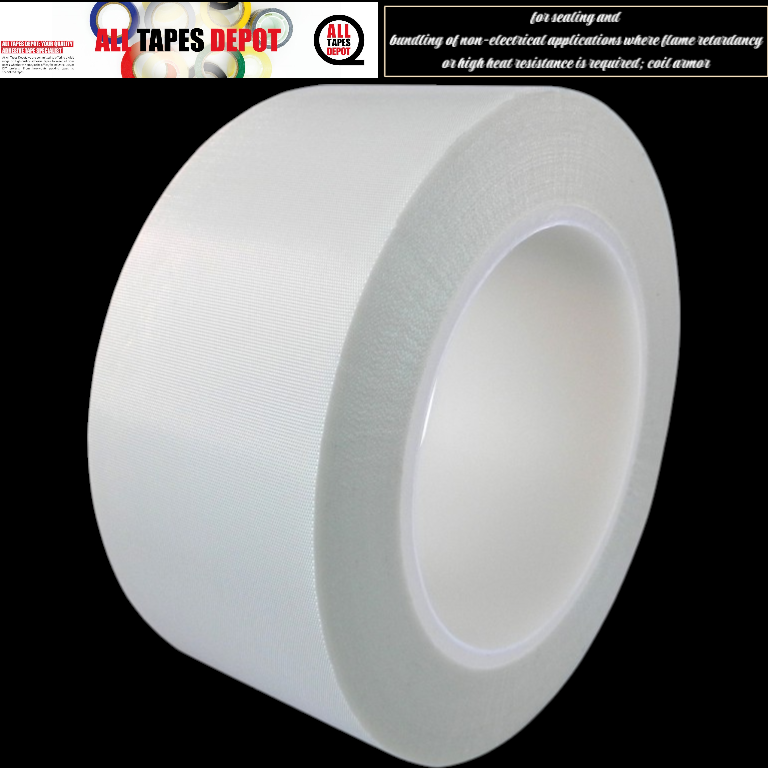

ATD-TFE-6WL Coated Glass Fabric Tapes.


Categories: , , , , , , ,
Clear
Cantidad de cajas

Description

Impregnated fiberglass cloth, consisting of warp and fill yarns, coated with a high temperature silicone adhesive. Excellent electrical, mechan-
ical and chemical properties. Used as a primary insulation in a variety of electrical equipment and heat sealing bars, chute liners, gaskets,
bearing surfaces, tabletop covers, guide rails and roll covers. Low friction surface; abrasion resistant. Product comes standard with liner (“WL”)
or available self-wound (“SW”). 1/2” AND 3/4” WIDE ROLLS MUST BE SELF WOUND. Also available without adhesive (“NA”). 3” plastic core.

Physical Properties​

Backing Thickness​2.8 mil/0.0028”​4.6 mil/0.0046”​5.4 mil/0.0054”​9.1 mil/0.0091”

Total Tape Thickness​5.0 mil/0.0050”​6.8 mil/0.0068”​8.4 mil/0.0084”​12.1 mil/0.0121”

Breaking Strength (Warp |Fill)​100 lb/in |70 lb/in​135 lb/in |120 lb/in​150 lb/in |140 lb/in​290 lb/in |180 lb/in

Adhesion​ 43 oz/in​36 oz/in​40 oz/in​60 oz/in

Elongation (Warp |Fill)​3.4% |2.0%​2.9% |3.2%​3.0% |4.0%​4.0% |3.4%

Operating Temperature Range​-100°F to 500°F​-100°F to 500°F​-100°F to 500°F​-100°F to 500°F

Electrical Strength​5.0 kV​6.1 kV​6.5 kV​8.0 kV


Additional information

Ancho

1", 1.5", 1/2", 2", 3", 3/4", 36"

largo

36 YD

espesor

0.0054"

Propiedades Físicas

con liner (WL)
