Description

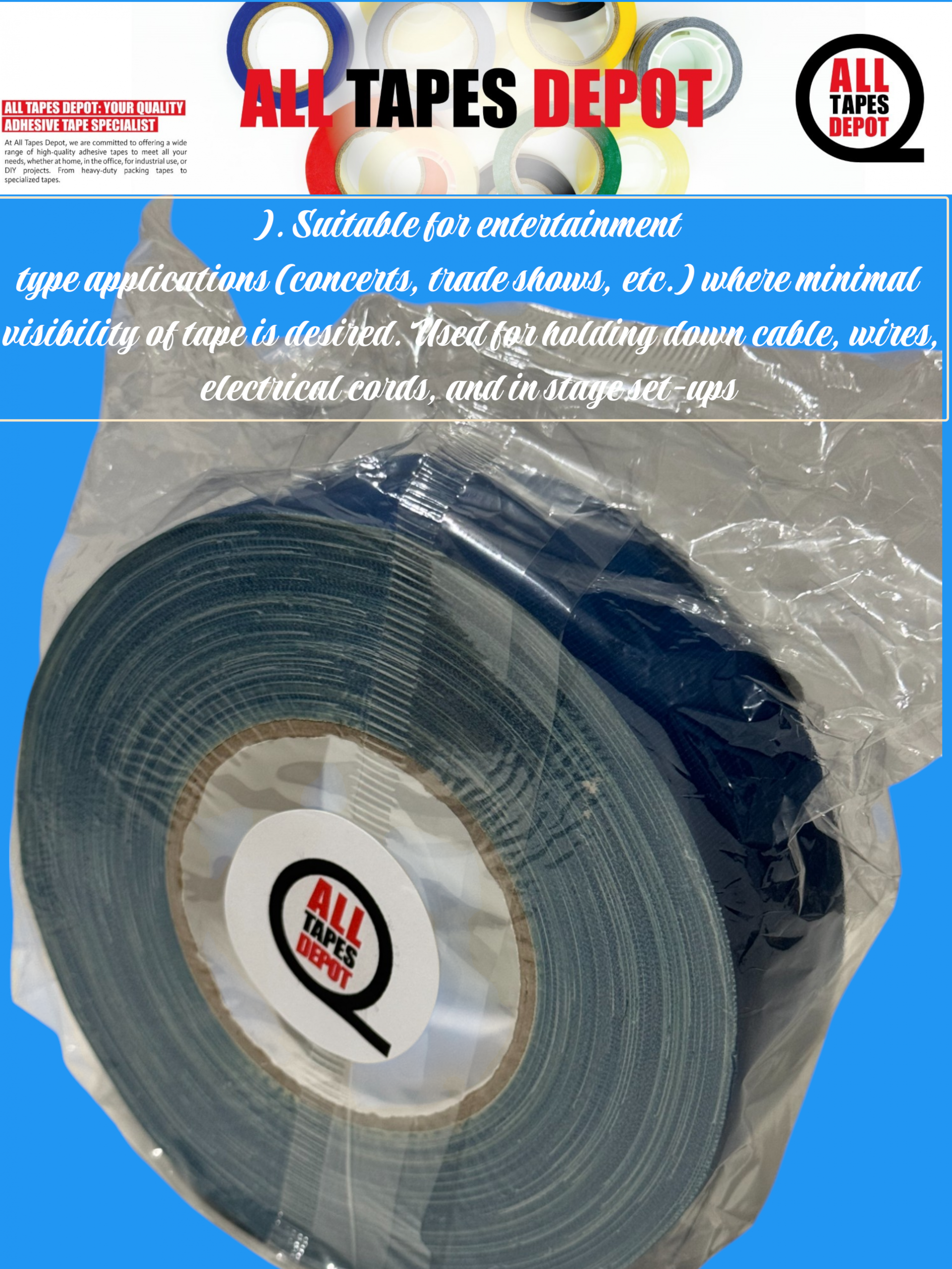

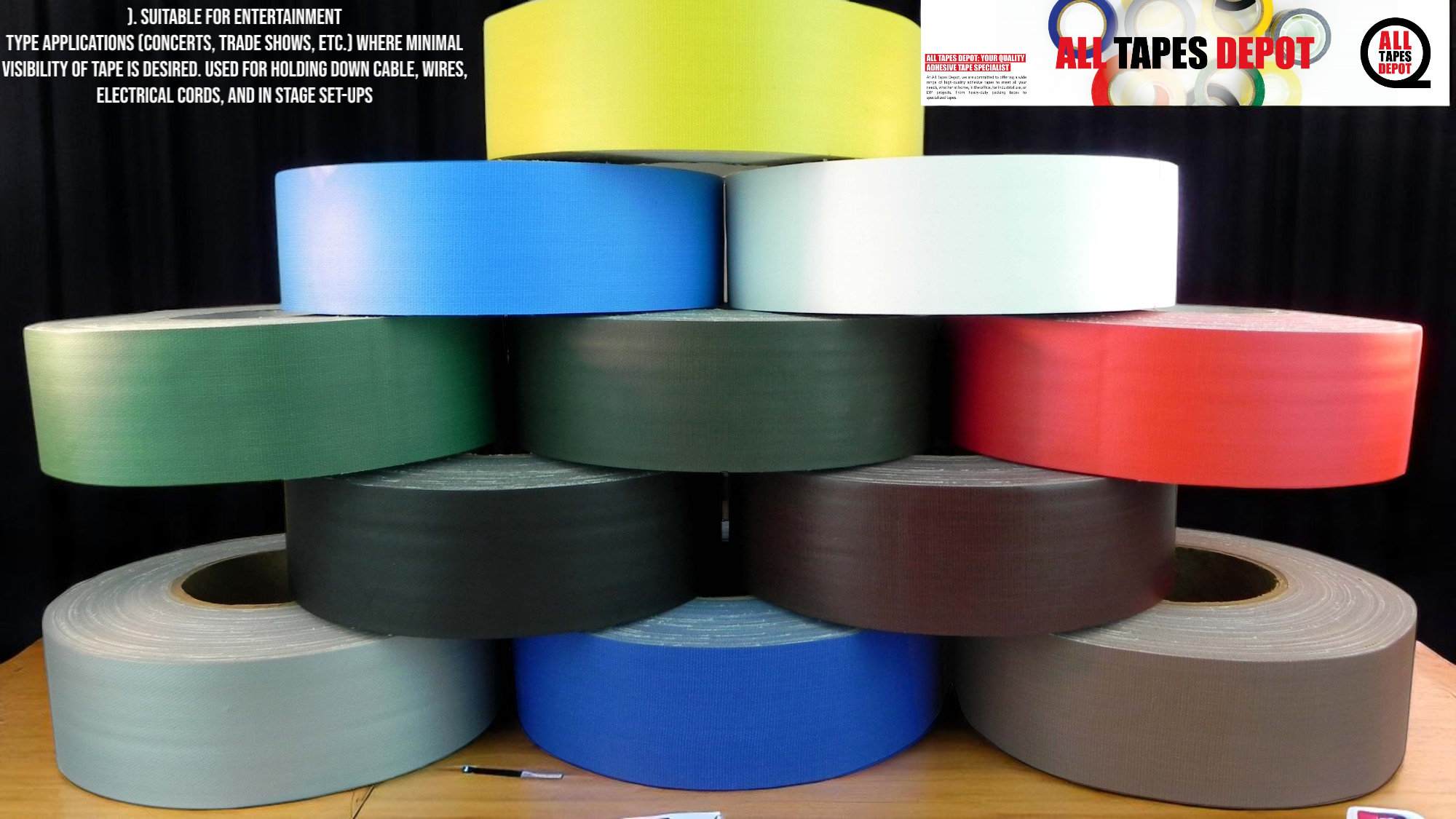

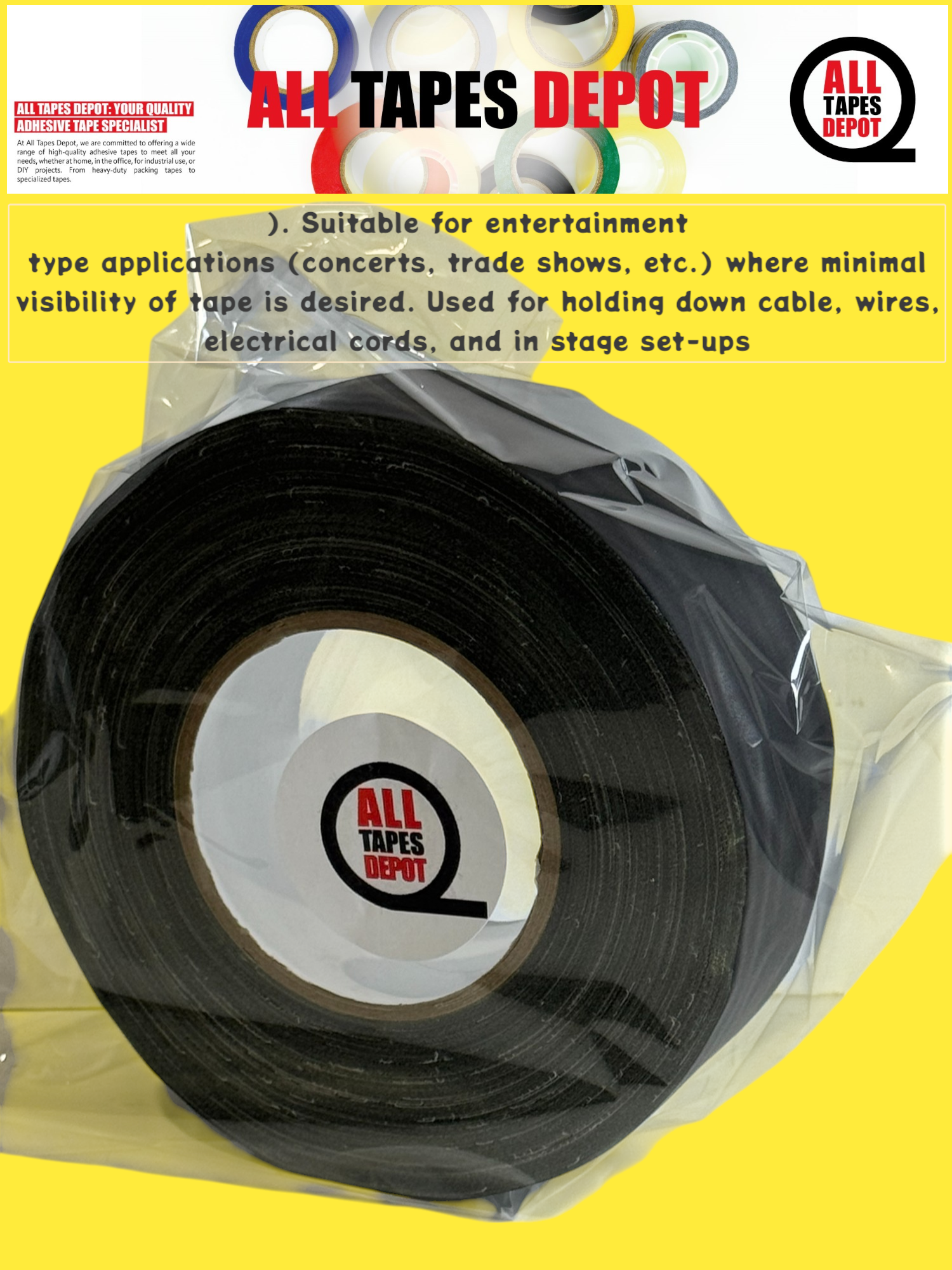

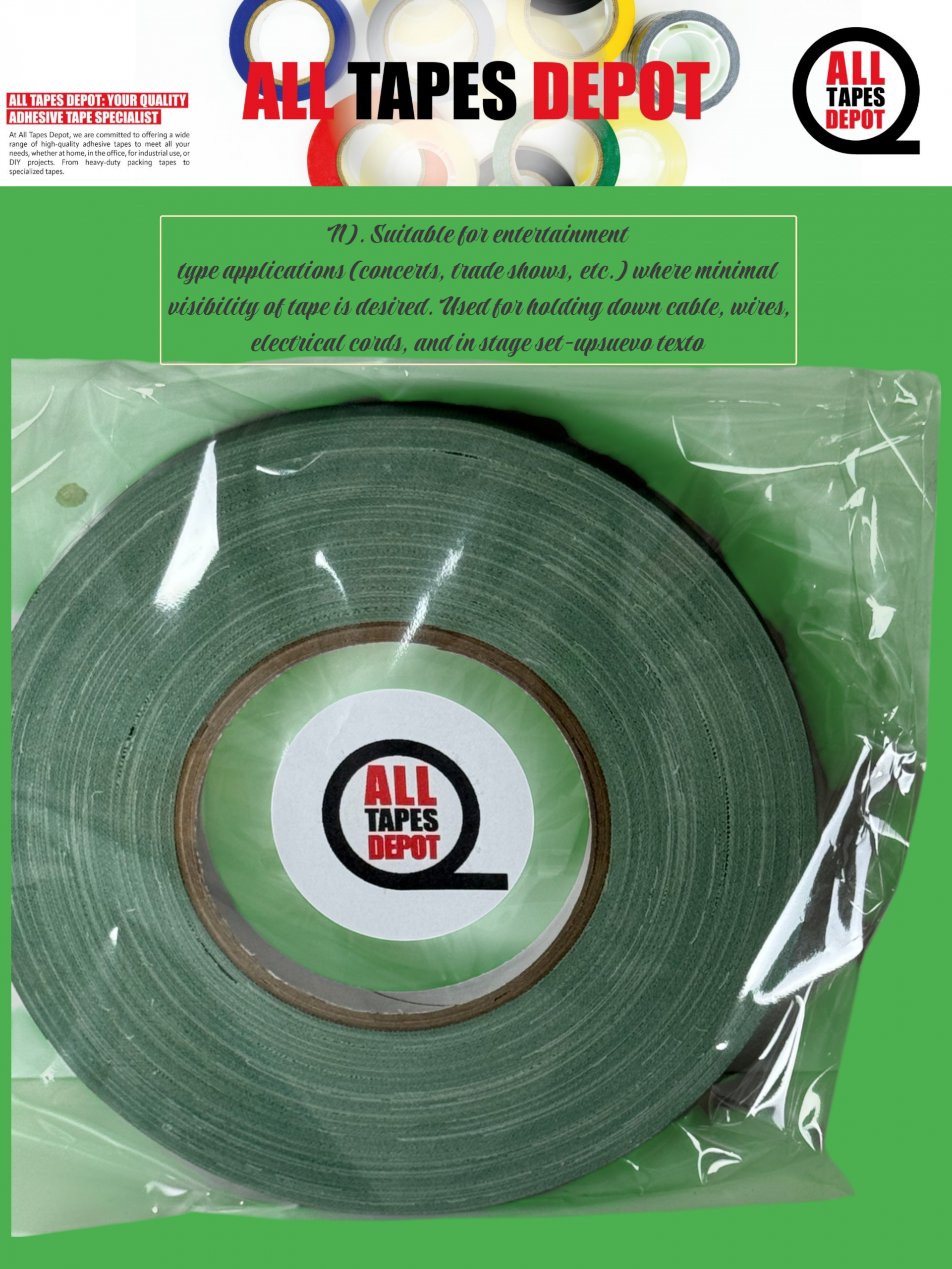

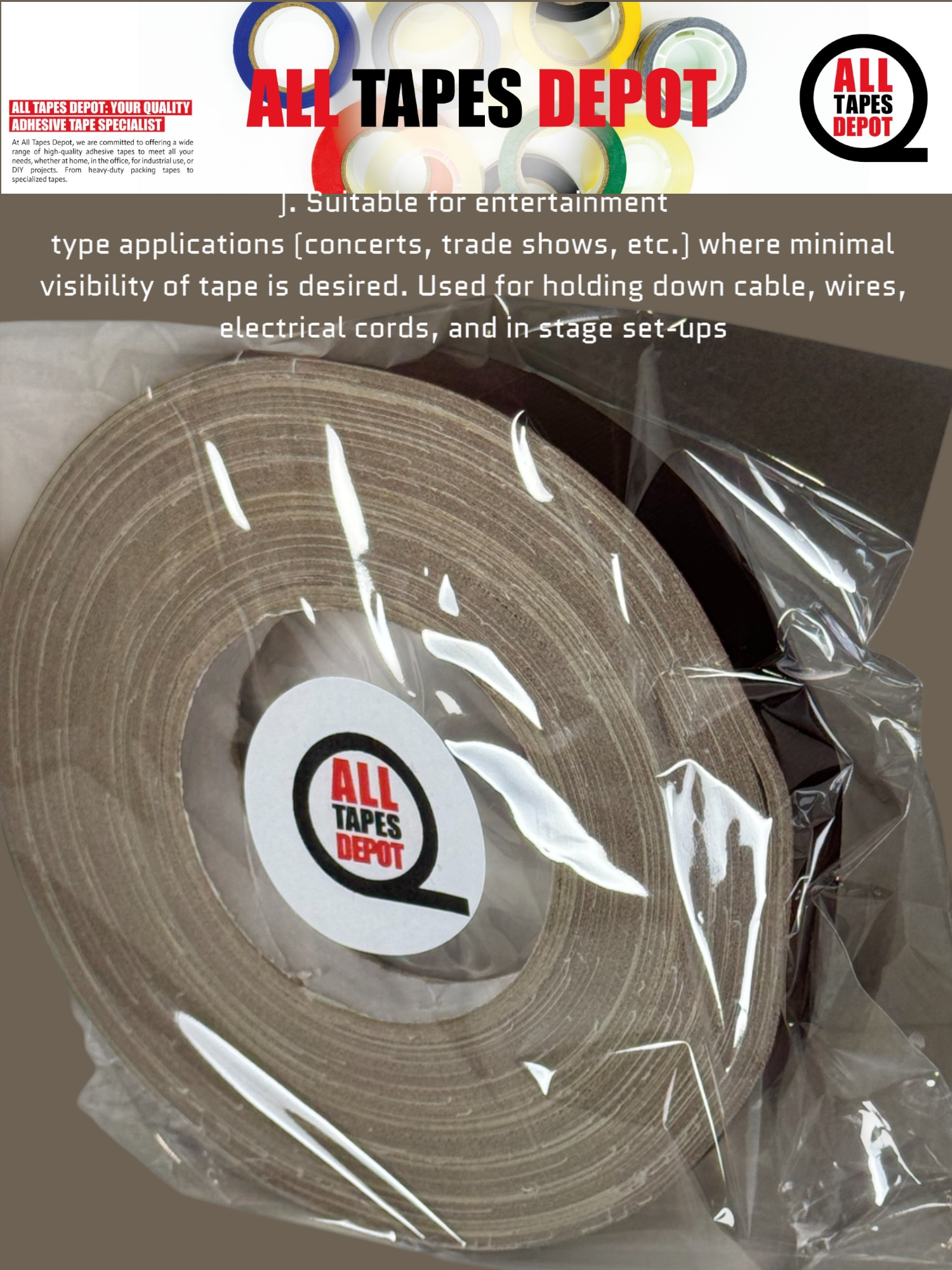

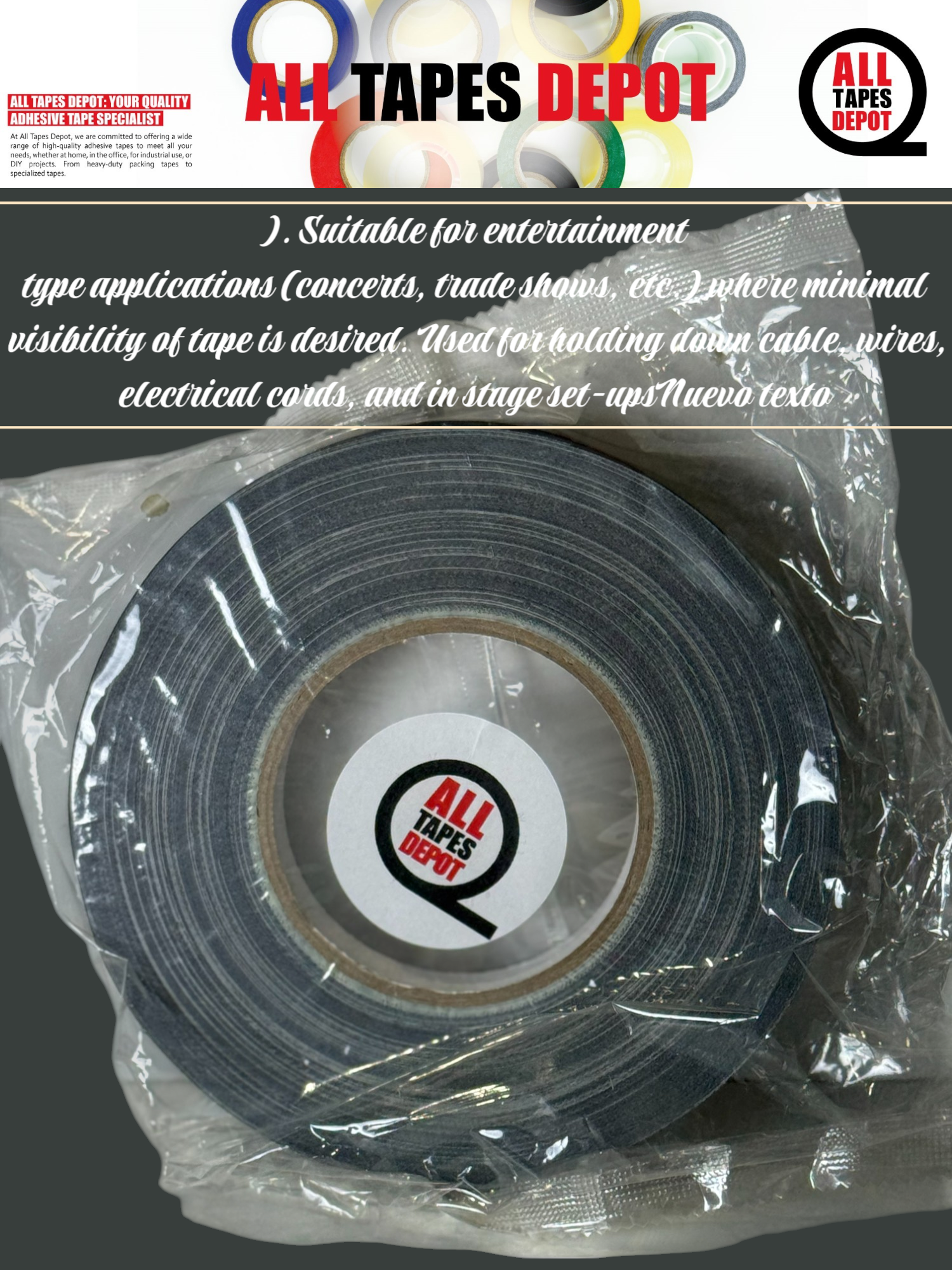

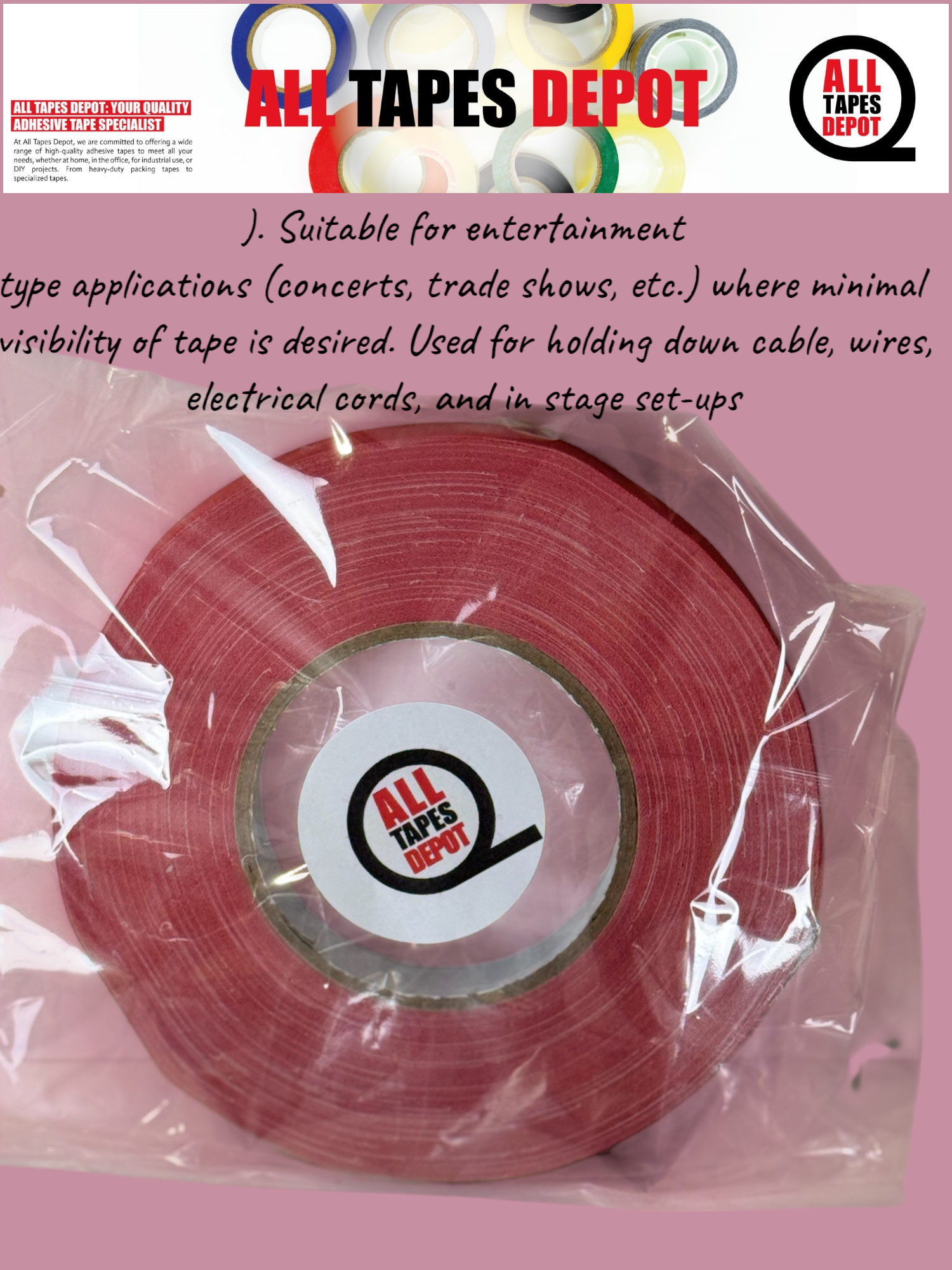

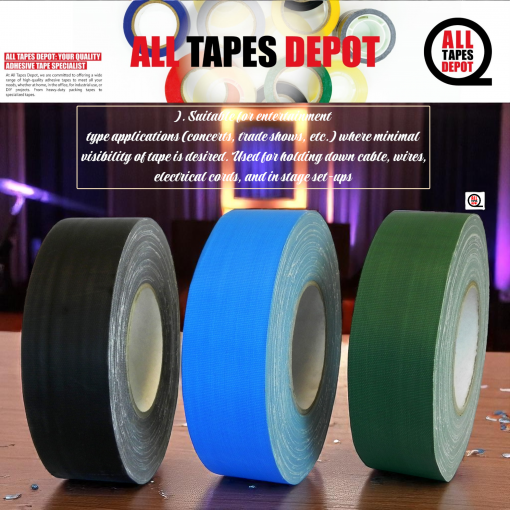

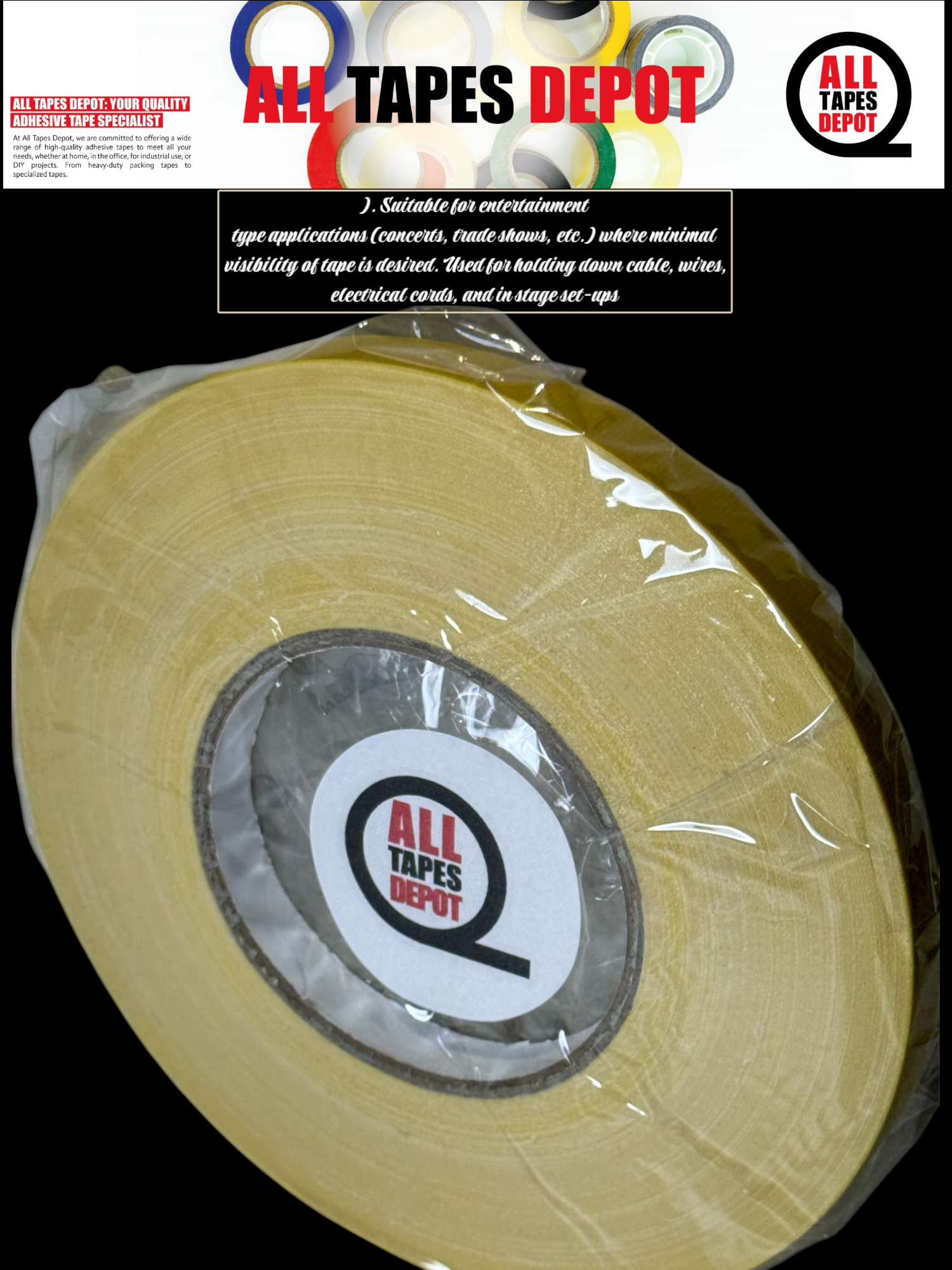

ATD-CGT-80 is a high-quality cloth tape designed for low-visibility insulation, marking, and cable management applications, especially in the entertainment industry. Constructed with a polyethylene-coated fabric (76 mesh) laminated to a dim-gloss film and coated with a natural rubber-based adhesive, it offers reliable performance across irregular surfaces.
With a total thickness of 11.8 mil, this non-reflective insulating cloth tape is ideal for concerts, commercial exhibitions, film production, and stage prep, where discrete and clean tape lines are preferred. It features excellent wear, water, and steam resistance, and removes cleanly on most surfaces (depending on dwell time and substrate).
Common applications include retaining cables, wire bundling, spike marking, book binding reinforcement, and general insulation.
🔧 Technical Specifications
-
Thickness: 11.8 mil
-
Mesh: 76
-
Backing: Polyethylene-coated cloth
-
Finish: Dim gloss, non-reflective
-
Adhesive: Natural rubber-based
-
Adhesion (initial): 29 oz/in
-
Adhesion (after extended dwell): 39 oz/in
-
Tensile Strength: 36 lbs/in
-
Temperature Resistance: -31°F to 176°F
-
Conformability: High – conforms to irregular surfaces
-
Removal: Clean on most surfaces
-
Core: 3” neutral core
-
Packaging: Anonymous box/carton
📌 Key Features
-
✔️ 11.8 mil insulating cloth tape for discreet applications
-
✔️ Dim gloss non-reflective finish – minimal visibility
-
✔️ Natural rubber adhesive for strong, clean bonding
-
✔️ Highly conformable to uneven or curved surfaces
-
✔️ Excellent resistance to abrasion, water, and steam
-
✔️ Easy hand-tearable, yet tough and durable
-
✔️ Ideal for concerts, exhibitions, TV/film sets, bookbinding
-
✔️ Clean removal on most surfaces
-
✔️ 3” neutral core – fits standard dispensers
