Description

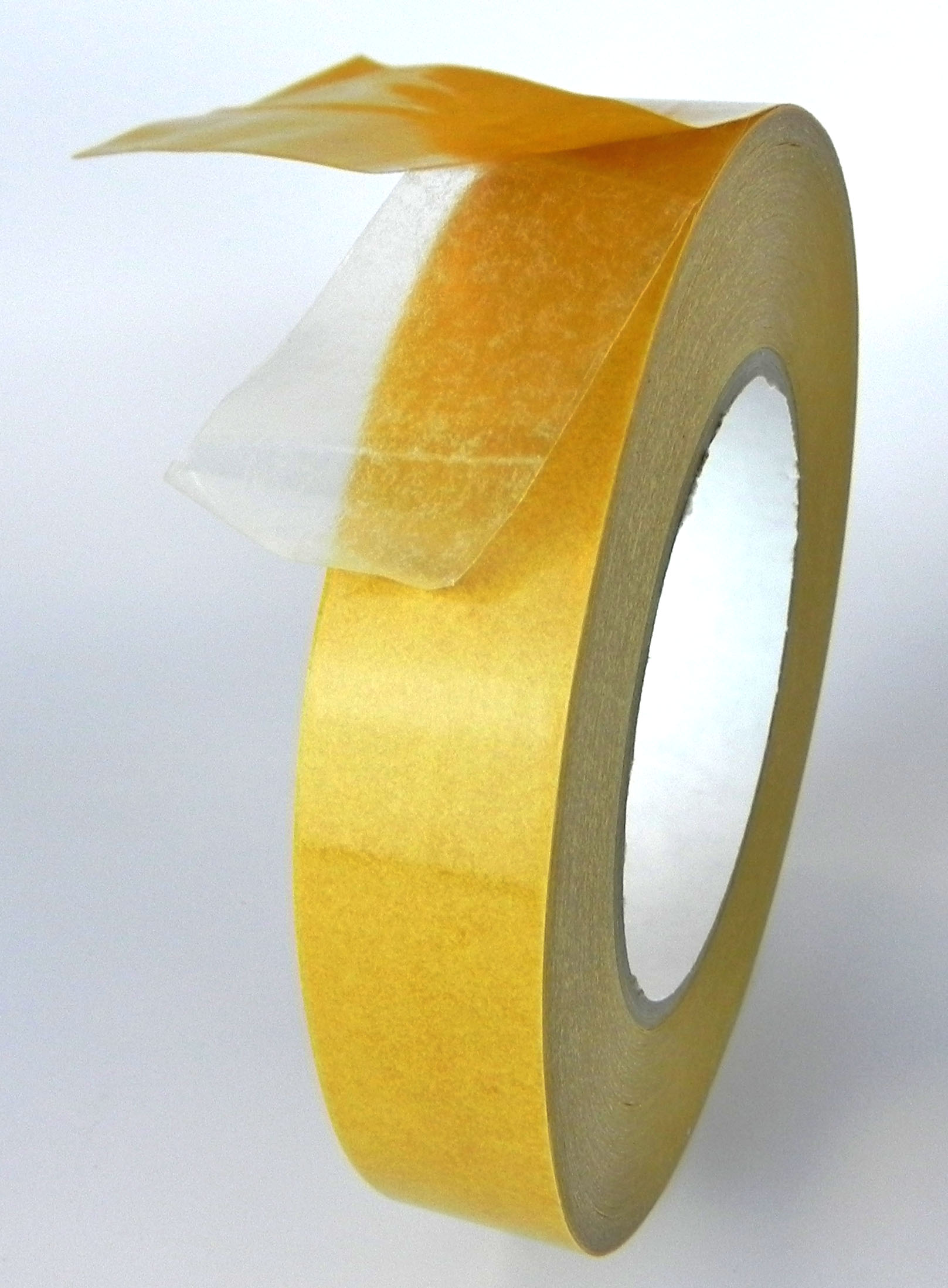

The ATD-DC-4109CS/G is a premium double coated clear polyester tape designed for precision bonding and laminating applications. With a total thickness of 3.5 mil (0.09mm), it uses a 0.5 mil clear polyester film carrier coated on both sides with a solvent-free water-based acrylic adhesive. This formula provides excellent quick stick, high peel and shear strength, and superior durability, even under high humidity conditions.
Its gold glassine release liner ensures easy and clean application, making it the ideal choice for high-speed flying splice operations and industrial laminating processes. In addition, it offers outstanding resistance to UV, aging, and extreme temperatures (up to 392°F short term
Technical Specifications
| Feature | Specification |
|---|---|
| Product Code | ATD-DC-4109CS/G |
| Film Carrier | 0.5 mil Clear Polyester |
| Total Thickness | 3.5 mil (0.09mm) |
| Adhesive Type | Solvent-Free Water-Based Acrylic |
| Release Liner | Gold Glassine Paper |
| Adhesion | >44 oz/in |
| Shear Strength | High |
| Temperature Resistance | -40°F to 392°F |
| UV & Aging Resistance | Excellent |
| Core | 3” Neutral Core |
-
📜 Printing & Paper Industry
Designed for high-speed flying splice of paper and corrugated board rolls. -
🎞️ Plastics & Foils
Perfect for laminating plastics, films, and metallic foils under continuous processing. -
📌 Signage & Graphics
Used for mounting nameplates and graphic panels with long-lasting adhesion. -
💻 Electronics & Keyboard Assembly
Provides precision adhesion for electronic components and keyboard manufacturing. -
🚗 Automotive Industry
Ideal for bonding in trim, insulation, and dissimilar metal laminations.
