Description
KPT-1 and KPT-2 Polyimide Tapes are high-performance Kapton™ alternatives designed for electrical insulation and high-temperature protection.
They are engineered to withstand demanding manufacturing processes such as wave soldering and hot air leveling.
Each tape is made from a durable polyimide film coated with a high-performance silicone adhesive.
This construction provides superior tear resistance, conformability, and long-term thermal endurance.
The gold/amber transparent film lets operators clearly observe the board during processing while protecting sensitive components.
These tapes also deliver excellent resistance to acids, oils, solvents, water immersion, and aging.
🔑 Key Benefits
-
High-performance Kapton™ alternative polyimide tape.
-
Reliable insulation for wave soldering and hot air leveling.
-
Gold/amber transparency for visibility during processing.
-
Superior tear resistance and conformability.
-
Excellent resistance to chemicals, moisture, and aging.
-
Trusted in electronics, PCB assembly, and aerospace industries.

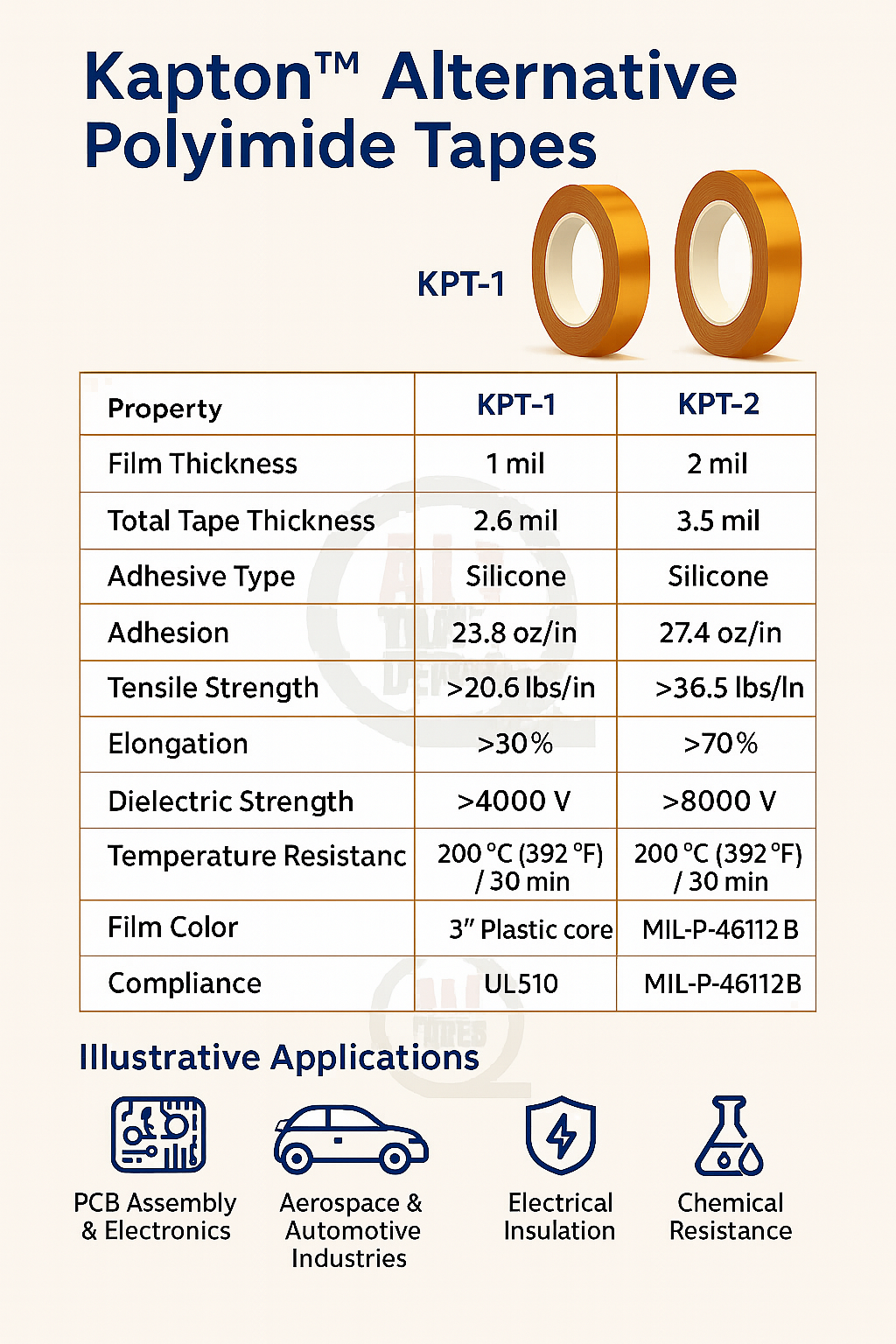

Technical Specifications
| Property | KPT-1 | KPT-2 |
|---|---|---|
| Film Thickness | 1 mil | 2 mil |
| Total Tape Thickness | 2.6 mil | 3.5 mil |
| Adhesive Type | Silicone | Silicone |
| Adhesion | 23.8 oz/in | 27.4 oz/in |
| Tensile Strength | >20.6 lbs/in | >36.5 lbs/in |
| Elongation | >30% | >70% |
| Dielectric Strength | >4000 V | >8000 V |
| Temperature Resistance | 200°C (392°F) / 30 min | 200°C (392°F) / 30 min |
| Film Color | Gold/Amber (Transparent) | Gold/Amber (Transparent) |
| Core | 3” Plastic Core | 3” Plastic Core |
| Compliance | UL510 | MIL-P-46112B |
🌟 Illustrative Applications
-
🖥️ PCB Assembly & Electronics
Protects gold contacts during wave soldering and hot air leveling. -
⚡ Electrical Insulation
Provides reliable dielectric protection at elevated temperatures. -
🔧 Aerospace & Automotive Industries
Withstands extreme heat, oils, and solvents in advanced manufacturing. -
🧪 Chemical Resistance
Resistant to acids, staining, and aging for long-lasting performance. -
🔍 Inspection Friendly
Transparent amber film permits visual inspection during processing.
